Surgical Isolators

Surgical, Flexible Film Isolators

For Gnotobiotic, Microbiome,
Microbial, Altered Schaedler Flora and Other Research That Requires a Controlled Environment

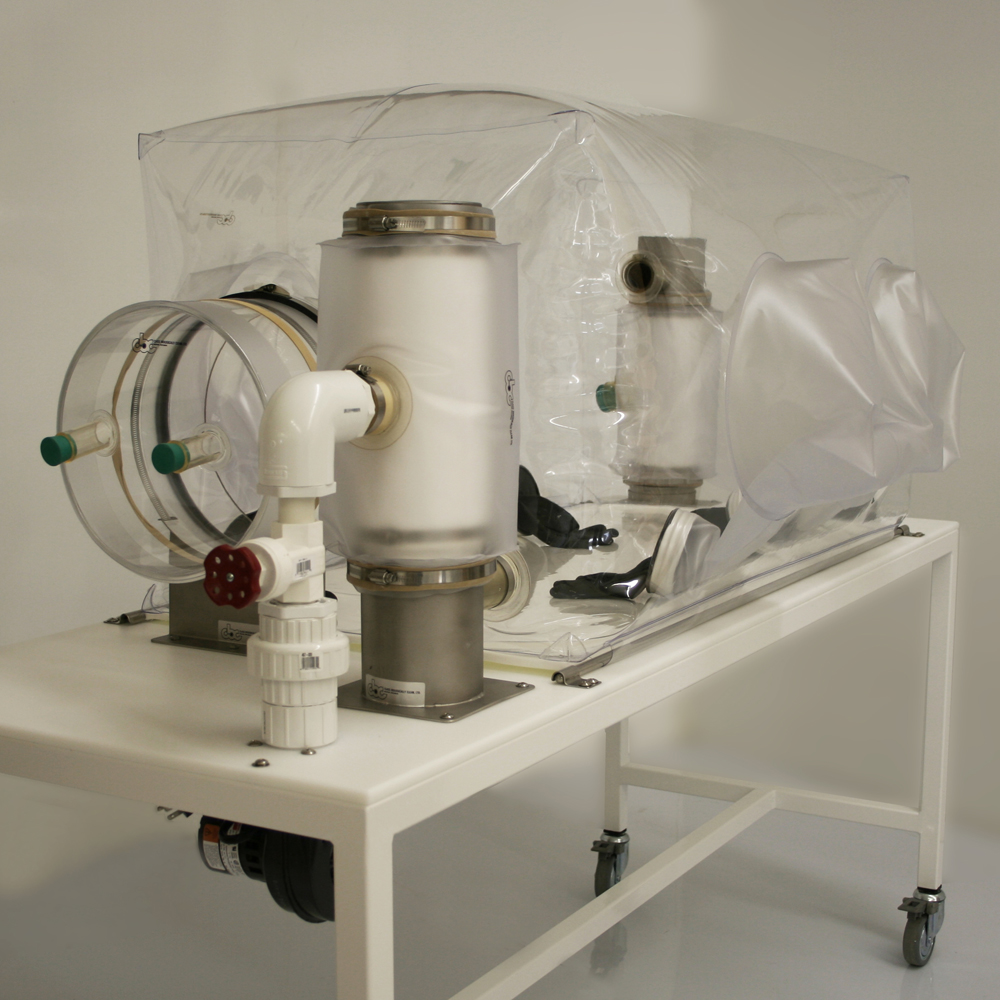

CBC Surgical Isolator for gnotobiotic research with glove sleeves on both sides of vinyl isolator.

Lap seam sealing process for extra durability.

CBC's Germ-free, Flexible Film, Surgical Isolator Systems

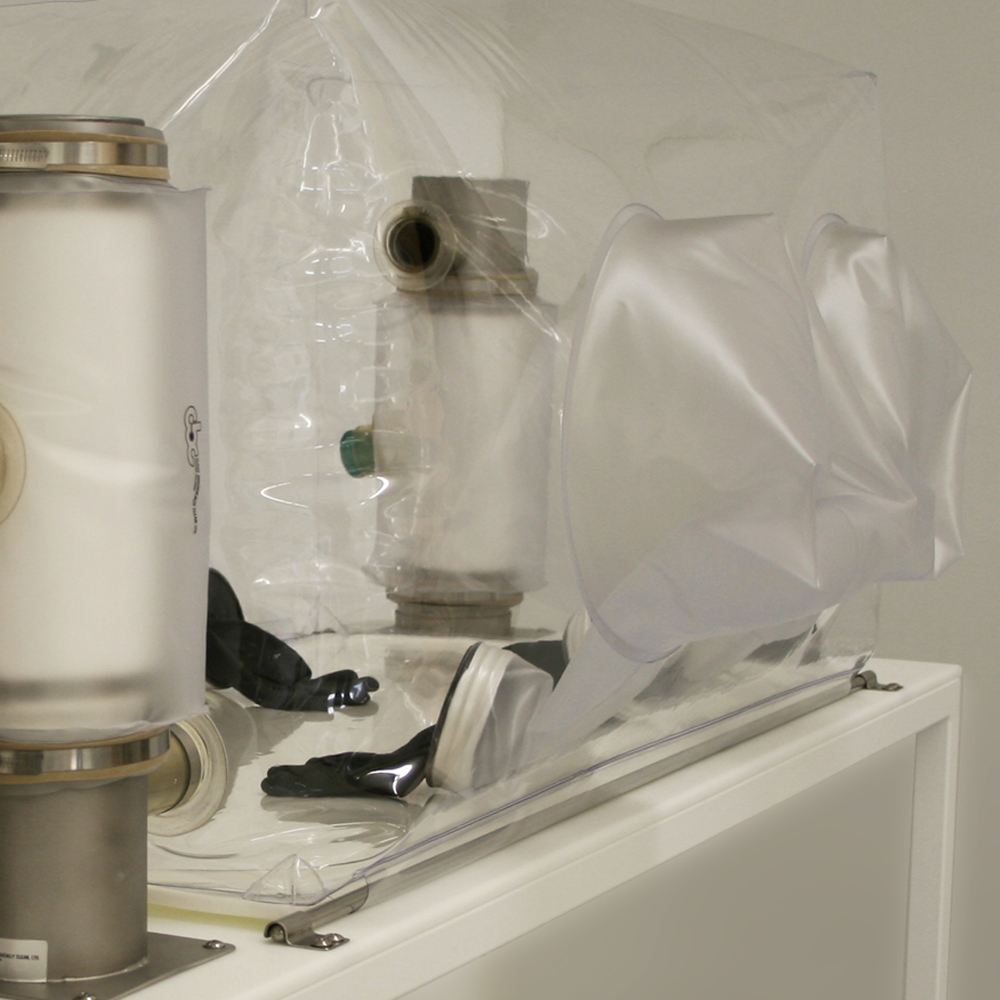

Isolator comes with a pair of 12" diameter glove sleeves on both sides of vinyl isolator and a 12" transfer port located on the end.

Surgical Isolator Features Include:

  • 1 1/2" steel powder coated single shelf frame to prevent bending or warping.
  • HDPE tabletop with inserts for attaching isolator components.
  • Two-way locking wheels.
  • 5/8" PVC hold-down rod and SS clamps.
  • Blower and manifold system.
  • (1) Durable 20 mil vinyl isolator.
  • 20 mil urethane floor mat protector for inside the isolator.
  • 3/8" closed cell foam pad for under isolator.
  • (1) complete 3" diameter inlet filter & (1) complete 3" diameter outlet filter (includes filter media, filter covers, rubber bands and clamps).
  • (2) pair of glove sleeves with 4" glove connection rings.
  • (2) pair of hand gloves - neoprene, nitrile or hypalon gloves available.
  • 12" Transfer Port (other sizes available).
  • Port to isolator neoprene band and clamp for sealing isolator to transfer port.
  • (2) 1" neoprene stoppers (other types available).
  • (1) outside transfer port cap.
  • (1) inside transfer port cap.
  • (1) patent clamp for attaching outside port cap to transfer port.
  • more...

Surgical Isolator Options:

  • Microscope attachment.
  • 4" dip tube for transferring items into the unit through an iodine bath.
  • 5" filters optional.

Standard Sizes:

  • 3' x 2' x 2'
  • 4' x 2' x 2'
  • Custom sizes available.
CBC Surgical Isolator schematic top view.

Each CBC Flexible Film Canopy is Marked With its Own Unique Serial Number and Manufacture Date to Ensure Traceability and Better Customer Support.

Serial number and manufacture date help ensure traceability and better customer service.

When you buy one of our gnotobiotic isolator systems or just a canopy, your canopy will be marked with its own unique serial number and manufacture date. Should you ever have a issue with the canopy (or need a replacement) CBC can trace your canopy back to the exact specs previously ordered. The same for replacement canopies for existing frames and filter systems.

Better Customer Service

  • Traceability.
  • Faster replacement.
  • More accurate replacement.

Accessories
replacement canopies for gnotobiotic isolators.

Replacement Canopies

Replacement germ-free isolator canopies for existing frames and filter systems. Custom sizes using CBC's unique lap seam seal process!

5 inch diameter filters for better air flow.

Isolator Filters

CBC's 5" diameter isolator filters with lower inlet ports and upper outlet ports provide greater air flow. 3" diameter filters also available.

Autoclave sterlizing cylinders.

Sterilizing/Autoclave Cylinders

CBC autoclave sterilizing cylinders for animal research (feed, water, bedding, cages, etc...). Custom sizes available to meet autoclave and shelf requirements.
